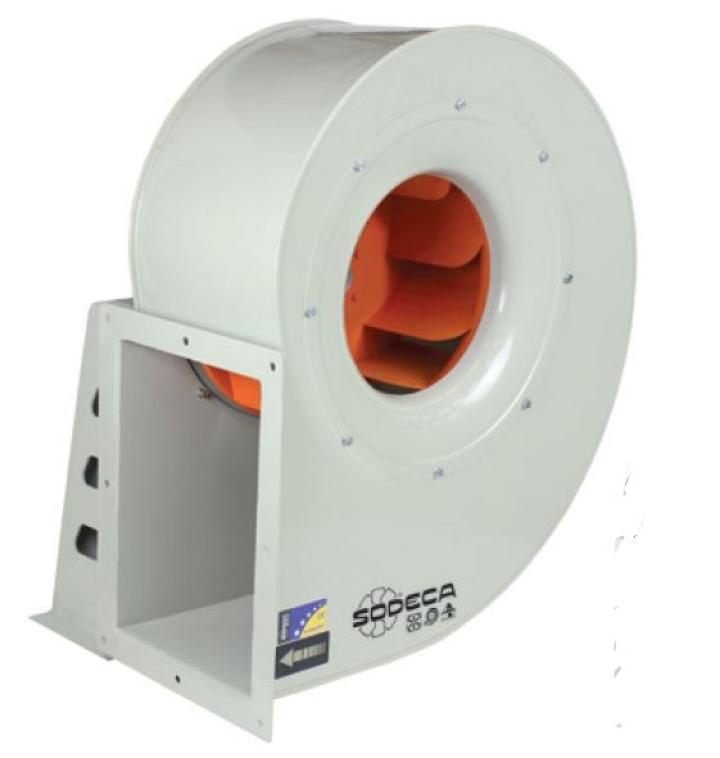

Ventilator centrifugal CRL-1240-4T-1

0 stars: 0.00 din 0 pareri

730919 lei Lei
Cod produs
CRL-1240-4T-1
Out Of stock
Descriere
Medium pressure, single inlet, centrifugal fans with sheet steel casing and straight blade impeller for carrying dust and solid material.

Supply: 230/400V 50Hz

Number of motor poles: 4

Motor power (HP): 1

Three phase motor

Speed (rpm): 1420

I max. (A): 2.82

Power (kW): 0.75

Air flow max. (m/h): 3630

Sound (db(A)): 74

Weight (Kg): 66

Dimensions (mm):

A = 635
B = 800
C = 500
H1 = 270

FEATURES:

Fan:

- Sheet steel casing.

- Impeller with reaction blades made of sheet steel.

- Maximum temperature of air to be carried: -20 C +120 C.

Motor:

- IE3 efficiency motors for powers equal to or greater than 0.75 kW except single-phase, 2-speed and 8-pole.

- Class F motors with ball bearings and IP55 protection.

- Three-phase 230/400 V - 50 Hz
