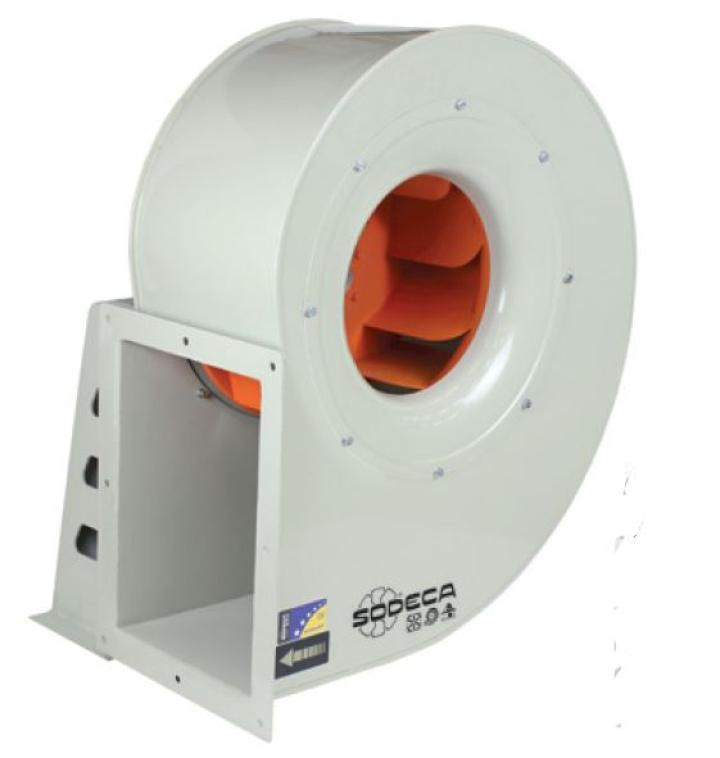

Ventilator centrifugal CRL-1445-4T-1.5

0 stars: 0.00 din 0 pareri

839107 lei Lei
Cod produs
CRL-1445-4T-1.5
Out Of stock
Descriere
Medium pressure, single inlet, centrifugal fans with sheet steel casing and straight blade impeller for carrying dust and solid material.

Supply: 230/400V 50Hz
Number of motor poles: 4
Motor power (HP): 1.5
Three phase motor
Speed (rpm): 1455
I max. (A): 4.07
Power (kW): 1.10
Air flow max. (m/h): 6170
Sound (db(A)): 78
Weight (Kg): 83

Dimensions (mm):

A = 710
B = 900
C = 600
H1 = 305

FEATURES:

Fan:

- Sheet steel casing.

- Impeller with reaction blades made of sheet steel.

- Maximum temperature of air to be carried: -20 C +120 C.

Motor:

- IE3 efficiency motors for powers equal to or greater than 0.75 kW except single-phase, 2-speed and 8-pole.

- Class F motors with ball bearings and IP55 protection.

- Three-phase 230/400 V - 50 Hz
