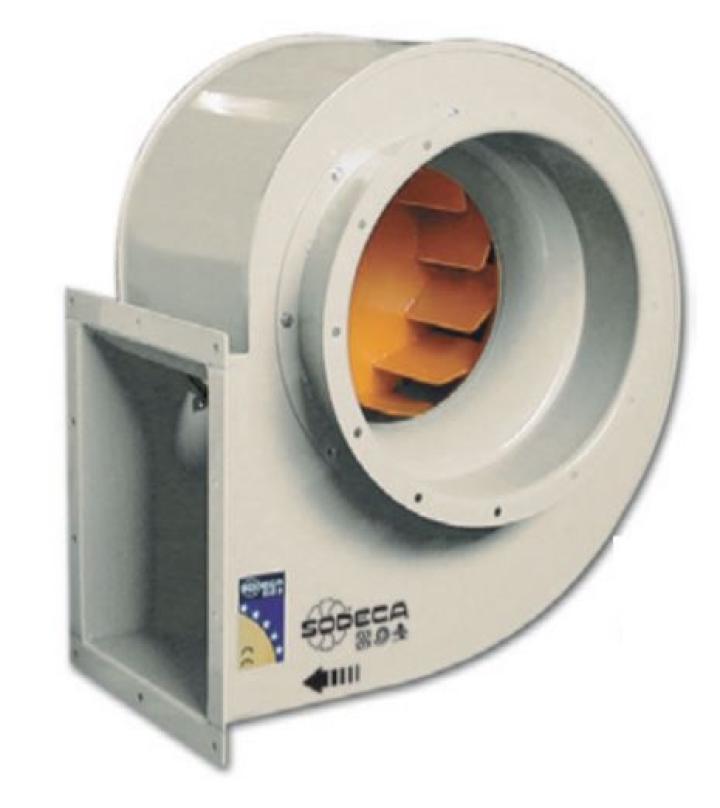

Ventilator centrifugal CBPC-1556-4T

0 stars: 0.00 din 0 pareri

1228242 lei Lei
Cod produs
CBPC-1556-4T
Out Of stock
Descriere
Medium pressure, single inlet centrifugal fans fitted with backward-curved impeller with a self-cleaning effect, specially designed for paint booths.

Supply: 230/400V 50Hz
Number of motor poles: 4

Three phase motor

Motor power (HP): 3

Speed (rpm): 1440

I max. (A): 10.70
Power (kW): 3.00
Air flow max. (m/h): 14000

Sound (db(A)): 80

Weight (Kg): 127

Dimensions (mm):
A = 1580
B1 = 1041
C = 916
H1 = 328

FEATURES:
Fan:

Sheet steel casing.

Impeller with reaction blades made of sheet steel.

Inspection hatch.
CBPC: with vertical outlet.

Motor:

IE3 efficiency motors for powers equal to or greater than 0.75 kW except single-phase, 2-speed and 8-pole.

Class F motors with ball bearings and IP55 protection.

Three-phase 230/400 V - 50 Hz (up to 4 kW).

Maximum temperature of air to be carried: -20 C +120 C.
