Ventilator centrifugal CA-166-2T-5.5

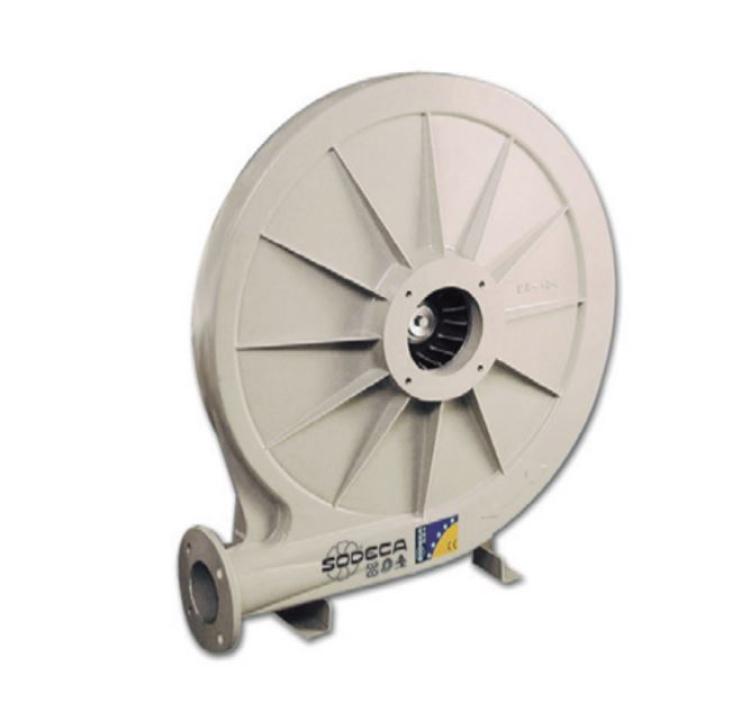

High pressure, single inlet, centrifugal fan with cast aluminium casing and impeller.
Three-phase motor.

Power (kW): 4.00
Supply: 400V /50Hz
I max (A): 13.00
Air flow max. (m/h): 1600
Speed (rpm): 2900
Sound pressure level dB(A): 86
Weight (Kg): 85

Dimensions (mm):

A = 759
B = 866
C = 435
D = 140
O = 13

FEATURES

Fan:

- Cast aluminium casing.

- Cast aluminium impeller.

Motor:

- IE3 efficiency motors for powers equal to or greater than 0.75 kW except single-phase, 2-speed and 8-pole.

- Class F motors with ball bearings and IP55 protection.

- Three-phase 230/400 V - 50 Hz (up to 4 kW) and 400/690 V - 50 Hz (powers higher than 4 kW).

- Maximum temperature of air to be carried: -20 C +120 C.

Finish:

- Anti-corrosive finish of polyester resin polymerised at 190 C, previously degreased with phosphate-free nanotechnological treatment.
