Ventilator centrifugal CRL-1135-2T-3

0 stars: 0.00 din 0 pareri

659211 lei Lei
Cod produs
CRL-1135-2T-3
Out Of stock
Descriere

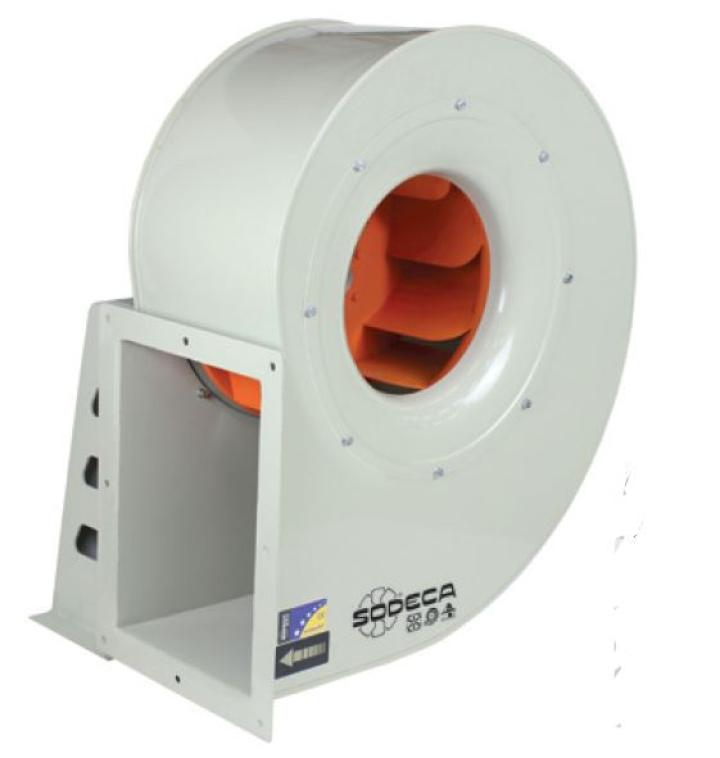

Medium pressure, single inlet, centrifugal fans with sheet steel casing and straight blade impeller for carrying dust and solid material.

Supply: 230/400V 50Hz
Number of motor poles: 2
Motor power (HP): 3
Three phase motor
Speed (rpm): 2870
I max. (A): 7.70
Power (kW): 2.20
Air flow max. (m/h): 5230
Sound (db(A)): 71
Weight (Kg): 59

Dimensions (mm):

A = 573.5
B = 715
C = 500
H1 = 242.5

FEATURES:

Fan:

- Sheet steel casing.
- Impeller with reaction blades made of sheet steel.
- Maximum temperature of air to be carried: -20 C +120 C.

Motor:

- IE3 efficiency motors for powers equal to or greater than 0.75 kW except single-phase, 2-speed and 8-pole.

- Class F motors with ball bearings and IP55 protection.

- Three-phase 230/400 V - 50 Hz
