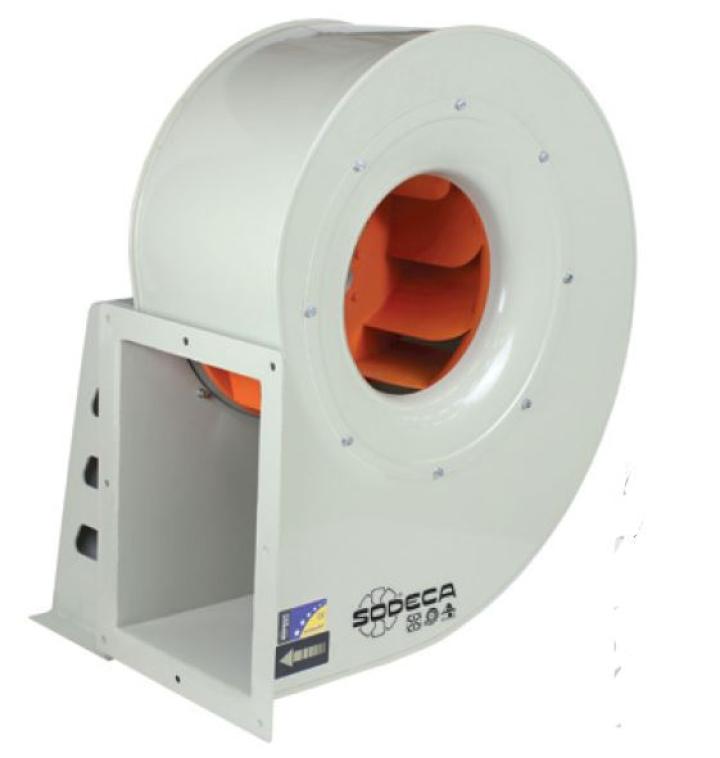

Ventilator centrifugal CRL-1240-2T-4

0 stars: 0.00 din 0 pareri

822123 lei Lei
Cod produs
CRL-1240-2T-4
Out Of stock
Descriere
Medium pressure, single inlet, centrifugal fans with sheet steel casing and straight blade impeller for carrying dust and solid material.

Supply: 230/400V 50Hz

Number of motor poles: 2

Motor power (HP): 4

Three phase motor

Speed (rpm): 2910

I max. (A): 10.00

Power (kW): 3.00

Air flow max. (m/h): 7320

Sound (db(A)): 90

Weight (Kg): 85

Dimensions (mm):

A = 635
B = 800
C = 585
H1 = 270

FEATURES:

Fan:

- Sheet steel casing.

- Impeller with reaction blades made of sheet steel.

- Maximum temperature of air to be carried: -20 C +120 C.

Motor:

- IE3 efficiency motors for powers equal to or greater than 0.75 kW except single-phase, 2-speed and 8-pole.

- Class F motors with ball bearings and IP55 protection.

- Three-phase 230/400 V ? 50 Hz
