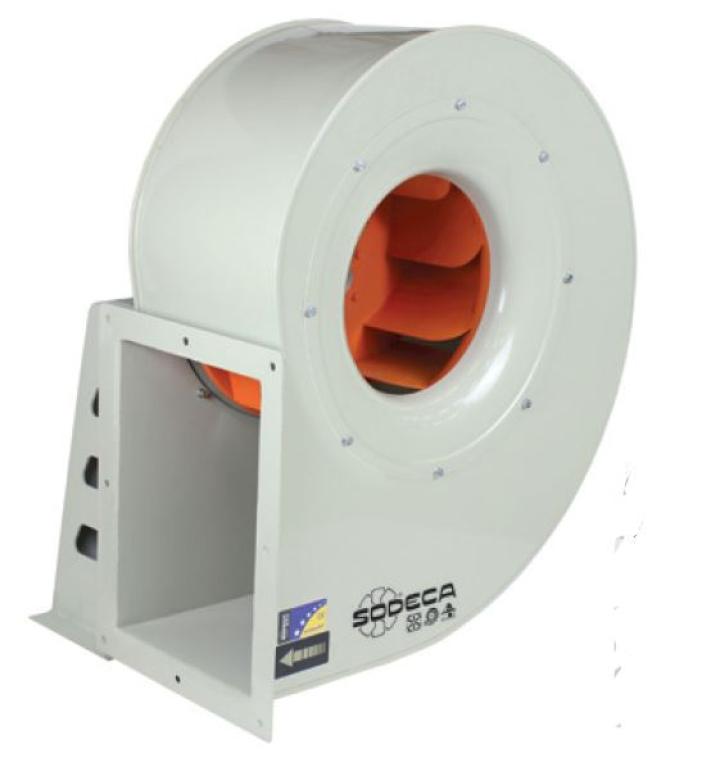

Ventilator centrifugal CRL-822-2T-0.33

0 stars: 0.00 din 0 pareri

426473 lei Lei
Cod produs
CRL-822-2T-0.33
Out Of stock
Descriere
Medium pressure, single inlet, centrifugal fans with sheet steel casing and straight blade impeller for carrying dust and solid material.

Supply: 230/400V 50Hz

Number of motor poles: 2

Three phase motor

Motor power (HP): 0.33

Speed (rpm): 2760

I max. (A): 1.24

Power (kW): 0.25

Air flow max. (m/h): 1350

Sound (db(A)): 72

Weight (Kg): 19

Dimensions (mm):

A = 388
B = 455
C = 342.5
H1 = 134

FEATURES:

Fan:

- Sheet steel casing.

- Impeller with reaction blades made of sheet steel.

- Maximum temperature of air to be carried: -20 C +120 C.

Motor:

- IE3 efficiency motors for powers equal to or greater than 0.75 kW except single-phase, 2-speed and 8-pole.

- Class F motors with ball bearings and IP55 protection.

- Three-phase 230/400 V - 50 Hz
